Boxplot over time

Source: R/boxplotSCI.R
boxplotSCI.Rd

Generates boxplots over time for one or multiple sub-groups.

Usage

boxplotSCI(
  data,
  var,
  order = NULL,
  visit = NULL,
  group = NULL,
  group_names = NULL,
  group_names_short = NULL,
  main = "",
  xlab = NULL,
  ylab = "Variable",
  ylim = NULL,
  y_ticks = NULL,
  col = NULL,
  cex_lab = 1,
  cex_axis = 1,
  cex_n_patients = 0.7,
  boxwex = NULL,
  shift = NULL,
  mar_custom = NULL,
  xlab_line = NULL,
  ylab_line = 3,
  xlab_position = NULL,
  lines = NULL,
  lty = NULL,
  col_lines = NULL,
  legend_position = "topright",
  legend_offset = c(0, 0),
  legend_cex = 1,
  legend_bty = "n",
  risk_table = NULL,
  missing_nr = 0,
  color_time = FALSE,
  stat_footnote = FALSE,
  ...
)

Arguments

data

A data frame or tibble containing the data to be plotted.

var

Name of the column in data indicating the measurement to be plotted. Supports bare or quoted column names.

order

Name of the column in data containing the time points of interest. The time points can be either numeric, character, or a factor. If the time points are factors, the factor levels must be in the correct chronological order for plotting. If left empty, the function will assume a single time point. If character, they need to be able to be ordered by numerical logic.

visit

Name of the column in data containing descriptive labels for the time points. Optional.

group

Name of the column in data containing the grouping variables (e.g., treatment arms). If left empty, the function will assume a single group.

group_names

A character vector containing the names of the groups to be displayed in the legend. The order must match levels(factor(data$group)). Default is NULL, which falls back to the group names found in the data.

group_names_short

A character vector containing short names or abbreviations for the groups, to be displayed below the x-axis near the patient counts. Optional. Defaults to group_names.

main

Title of the plot. Defaults to "" (no title).

xlab

A label for the x-axis. Default is "Time" if there are multiple time points, otherwise defaults to "Group".

ylab

A label for the y-axis. Default is "Variable".

ylim

The y-axis limits of the plot as a numeric vector of length 2. Default is NULL, which adds a 10% padding buffer above and below the data range.

y_ticks

A numeric vector specifying the explicit tick positions on the y-axis. Default is NULL, which places about 5 ticks at round values within the y-axis limits, as in the other plots of the package.

col

A character vector of hex colors or color names to use for the boxes. Default is NULL, which automatically applies the SCI color palette.

cex_lab

A numeric value specifying the font size of the main axis labels. Default is 1.

cex_axis

A numeric value specifying the font size of the axis tick marks. Default is 1.

cex_n_patients

A numeric value specifying the font size of the sample size labels and numbers displayed beneath the horizontal axis. Default is 0.7.

boxwex

Scale factor for the width of the boxes. Default is NULL, which scales the box flexibly to the size of total timepoints and groups.

shift

A numeric value indicating the distance between adjacent boxes within a timepoint cluster. Default is NULL, which dynamically sets spacing to boxwex * 1.15.

mar_custom

A numeric vector indicating the plot margins to be used in the form c(bottom, left, top, right). Default is NULL, which dynamically calculates spacing so that stacked sample-size rows are never clipped.

xlab_line

A numeric value indicating the margin line offset for the x-axis label. Default is NULL, which calculates an adaptive offset based on the number of groups.

ylab_line

A numeric value indicating the margin line offset for the y-axis label. Default is 3.0.

xlab_position

Horizontal position coordinate adjustment for the sample size group headers down the left-hand margin. Default is NULL, which auto-aligns them.

lines

A numeric vector indicating the vertical coordinates where horizontal reference lines will be plotted. Optional.

lty

A numeric vector of length 1 or of the same length as lines indicating the line type to be plotted. Default is 1 (solid).

col_lines

A character vector of length 1 or of the same length as lines indicating the color of the reference lines. Default is "grey".

legend_position

Position of the legend box. Options include standard base R keywords (e.g., "topright", "topleft", "bottom") or manual numeric coordinate pairs c(x, y). Default is "topright".

legend_offset

A numeric vector of length 2 specifying an inset to nudge the legend position away from plot elements. Default is c(0, 0).

legend_cex

A numeric value specifying the font and element scaling size inside the legend box. Default is 1.

legend_bty

The type of box border to be drawn around the legend. Allowed values are "n" (transparent/no border, the default) and "o" (standard box frame).

risk_table

A logical toggle switch enabling the patient numbers (non-missing observations of var) beneath the x-axis: one row per group over time, or one number under each box for a single time point. Default is NULL, which shows them over time but not for a single time point; TRUE shows them in both cases, FALSE in neither.

missing_nr

A numeric or character value indicating how zero-count patient sizes on the x-axis should be displayed. Default is 0. Can also be set to NA.

color_time

A logical toggle switch enabling legacy timepoint colorization. Supports legacy use, where, for a single timepoint, multiple groups were used as "timepoint" variable. If set to TRUE, it treats timepoints as individual categories,applying sequential coloring and rendering a matching tracking legend. Default is FALSE.

stat_footnote

Show what the plot displays as a footnote in the bottom-right corner, beneath the x-axis title: TRUE for the default text (e.g. the definition of box and whiskers), a character string for a text of your own, or FALSE (the default) for none.

...

Further graphical parameters passed on to bxp(), which draws the boxes for boxplot(), e.g. lwd, border, outline = FALSE (no points for outliers) or range (the whisker length, see above; 0 for whiskers to the minimum and maximum).

Details

The box spans the first to the third quartile with the median inside, computed as in the summary tables (summaryTable(), summaryByVisit(): quantile(type = 2)), so that a boxplot and a "median_IQR" table show the same numbers. (boxplot() itself draws Tukey's hinges, which can differ slightly.) The whiskers reach the most extreme values within range (1.5 by default) times the box length from the box; values beyond are drawn as points.

Examples

library(summarySCI)
data("hemoglobin_data")

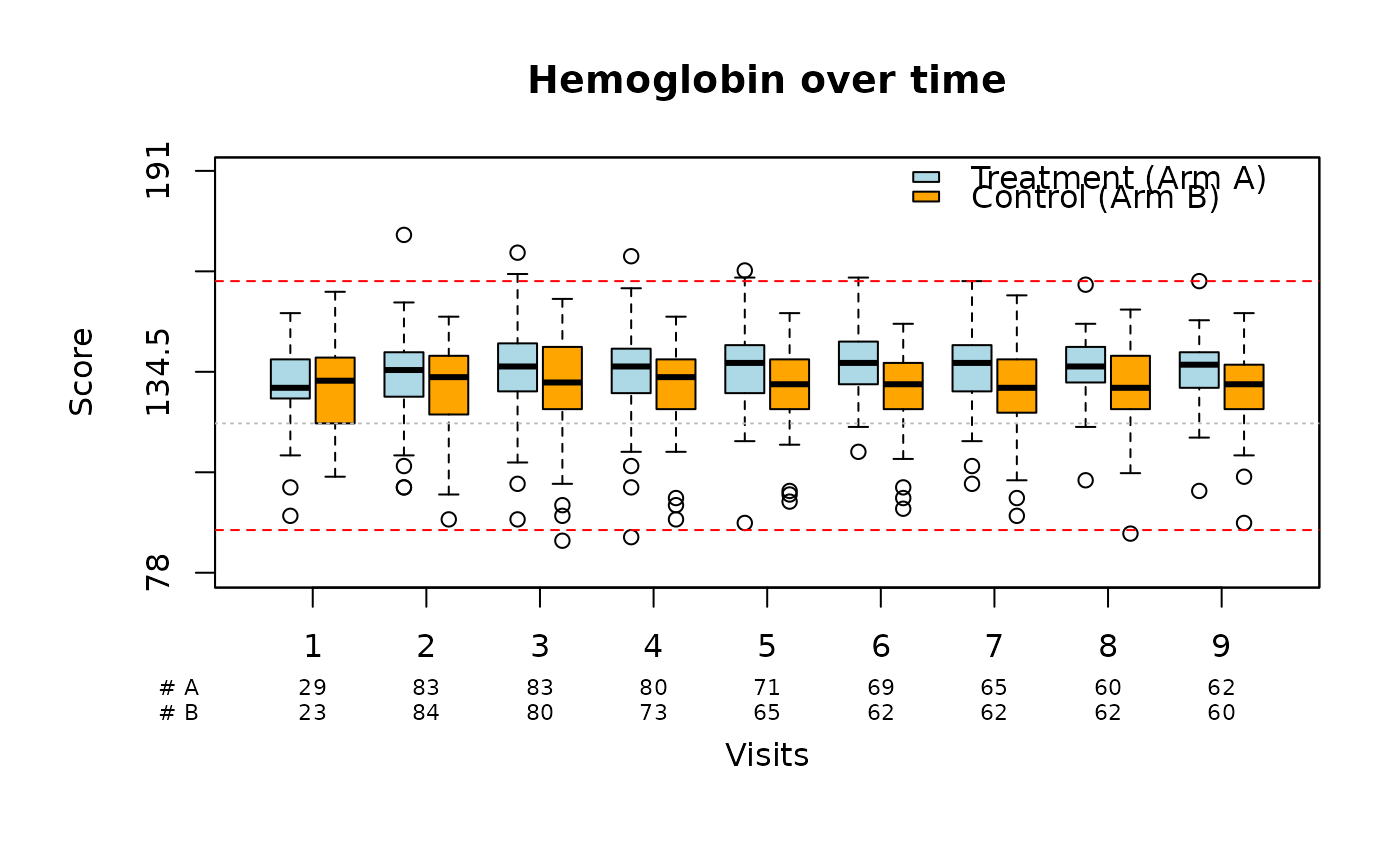

boxplotSCI(data = hemoglobin_data,
                 var = hb,
                  order = visit_nr,
                  group = Arm,
                  group_names = c("Treatment (Arm A)", "Control (Arm B)"),
                  group_names_short = c("A", "B"),
                  # Title
                  main = "Hemoglobin over time",
                  # Col of boxes
                  col = c("lightblue", "orange"),
                  # X axis label
                  xlab = "Visits",
                  # X axis position
                  xlab_position = 0,
                  # Y axis label
                  ylab = "Score",
                  lines = c(90, 120, 160),
                  # Col of lines
                  col_lines = c("red", "grey", "red"),
                  # Type of lines
                  lty = c(2, 3, 2)
)
